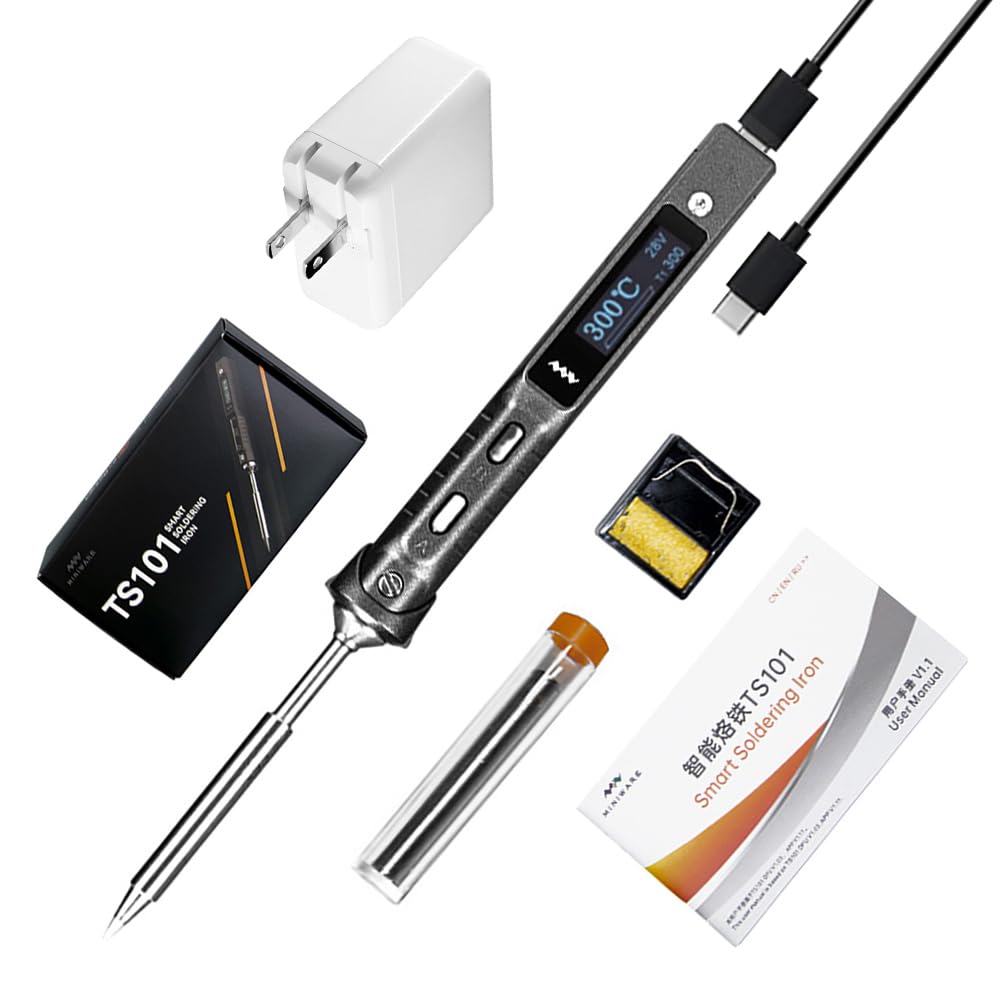

MINIWARE is an innovative product brand of e-Design, specialized in design and development in mini sized smart tools. The main products are mini oscilloscopes, mini logic analyzers, smart electric soldering irons, smart screwdrivers and precise digital power supplies, as well as the research and development of relaticve products. Various power supply are available for this mini soldering iron TS101. We provide 20V 2.4A USB wall charger in our package, but in fact it could be also available in DC power adapter, lipo battery and power bank. Stand Design Built in the "cat" shape stand in the soldering iron itself, so it could be easiely to be placed on the desk after soldering job, avoid the accidental burn with skin. USB Type-C and DC5525 At the end of the controller of soldering iron, built in ports of USB type-C and DC5525: USB Type-C: for firmware upgrade and power supplyDC5525: for DC power supply NOTE: both ports could NOT be used simultaneously ! 45W US-Power Supply Equipped with US-customized 45W power supply that ensure full power output and fast heating speed which can reach to the set temperature within 15 seconds. PS: this is NOT a rechargeable product, it requires external power supply ! Lightweight and Portable The length of the soldering iron is only 169mm, it is about the size of a pen which makes it very convenient to carry out in pocket to perform the soldering job anywhere and anytime. Programmable Connect the soldering iron to computer with USB cable, you can customize the default values; such as Standby Temperature, Work Temperature, Sleeping Time.....etc. Firmware Upgrade Visit the official web and download the latest firmwareConnect the soldering iron to computer, and press the button A (close to the soldering tip side) to enter DFU mode, once “DFU1.0” displays on the screen, a virtual disk with 8 serial numbers will appear on your computer.Copy the hex firmware to the root directory of that disk. When the extension of the firmware changes from “HEX” to “RDY”, disconnect USB and the firmware upgrade is complete. TS100 TS101 Buying Options Add to Cart Customer Reviews 4.2 out of 5 stars 58 4.0 out of 5 stars 18 Price — no data $84.99$84.99 USB Port Micro USB USB Type-C OLED Screen 96*16 128*32 Power Supply DC DC, PD3.0 Power Range DC 17-65W DC 9-65V; PD3.0 45W (max) Input Voltage DC 12-24V DC 9-24V; PD3.0 9-20V Heat Temp. Range 100-400℃ 50-400℃ Tip Installation Flathead screw Insertion (bead screw) Built-In Stand N/A ✓ One Key BOOST N/A ✓
【Portable and Lightweight】this mini soldering iron is portable and about the size of a pen, you can perform the soldering job in anywhere and anytime.
【Fast Heating】the MINIWARE portable soldering iron kit heats up in just seconds. The temperature is displayed on OLED screen and can be adjusted from 50°C - 400°C.
【External Power Supply】The soldering iron is powered DC9V-24V power or PD3.0 9V-20V; the USB-C port can be used for firmware upgrade and power supply (PD power with up to 45W). NOTE 45W USB WALL POWER IS INCLUDED IN OUR SOLDERING KIT
【Programmable】Open source code, through editing the parameter file, you could design your own temperature-rising curves and custom functions by simply connecting to the computer.
【Smart & Safe】integrated with dual-temperature and accelerated sensors. It has sleep mode and automatic over-heating warning.
【One Boost】keep pressing the One Boost button, the heat temperature can rise from 300°C to 400°C within a short time.
【Upgrade Version】this TS101 is a upgrade version of TS100, so the accessories of TS100 such as soldering tip, welding wire, charger etc are compatible to use in TS101.
After doing extensive research for a modern soldering iron, I decided on this kit, and I couldn't be happier with my purchase. It checked all the boxes for what I was looking for, and when it arrived, it exceeded my expectations. Despite being small and lightweight, it delivers impressive performance when needed. The USB-C power functionality is a fantastic feature, adding convenience and ease of use. I highly recommend reading the manual thoroughly, as understanding how it works enhances its performance. Overall, I’m extremely satisfied with this purchase and would buy it again without hesitation.
